Four Chain Series.
One Correct Answer.
Bridge-type for fast cable loading, fully enclosed for chips and dust, perforated-plate steel for long hot runs, and the TLG sealed box for foundries and outdoor duty. Pick the construction — we tailor the cavity to your cable schedule.
04
CHAIN SERIES IN STOCK
50m+
TRAVEL LENGTH SUPPORTED
350°C
MAX STEEL SERIES TEMP
7 Days
CUSTOM BUILD LEAD TIME
01 / OVERVIEW
One Chain, Every Axis.
A drag chain is the artery of a moving machine. Ours are manufactured in-house — from strip-steel punching and injection moulding to final assembly — so tolerances, materials and surface treatment stay under our control from first link to last.
SERIES 01 / BRIDGE-TYPE
Bridge-Type Drag Chain
Openable bridge crossbars run the full length of the chain, so cables press straight in from the top instead of being threaded end-to-end. The standard choice for machine tools: fastest installation, easy retrofits, and inspection without disassembly.
SERIES 02 / FULLY ENCLOSED

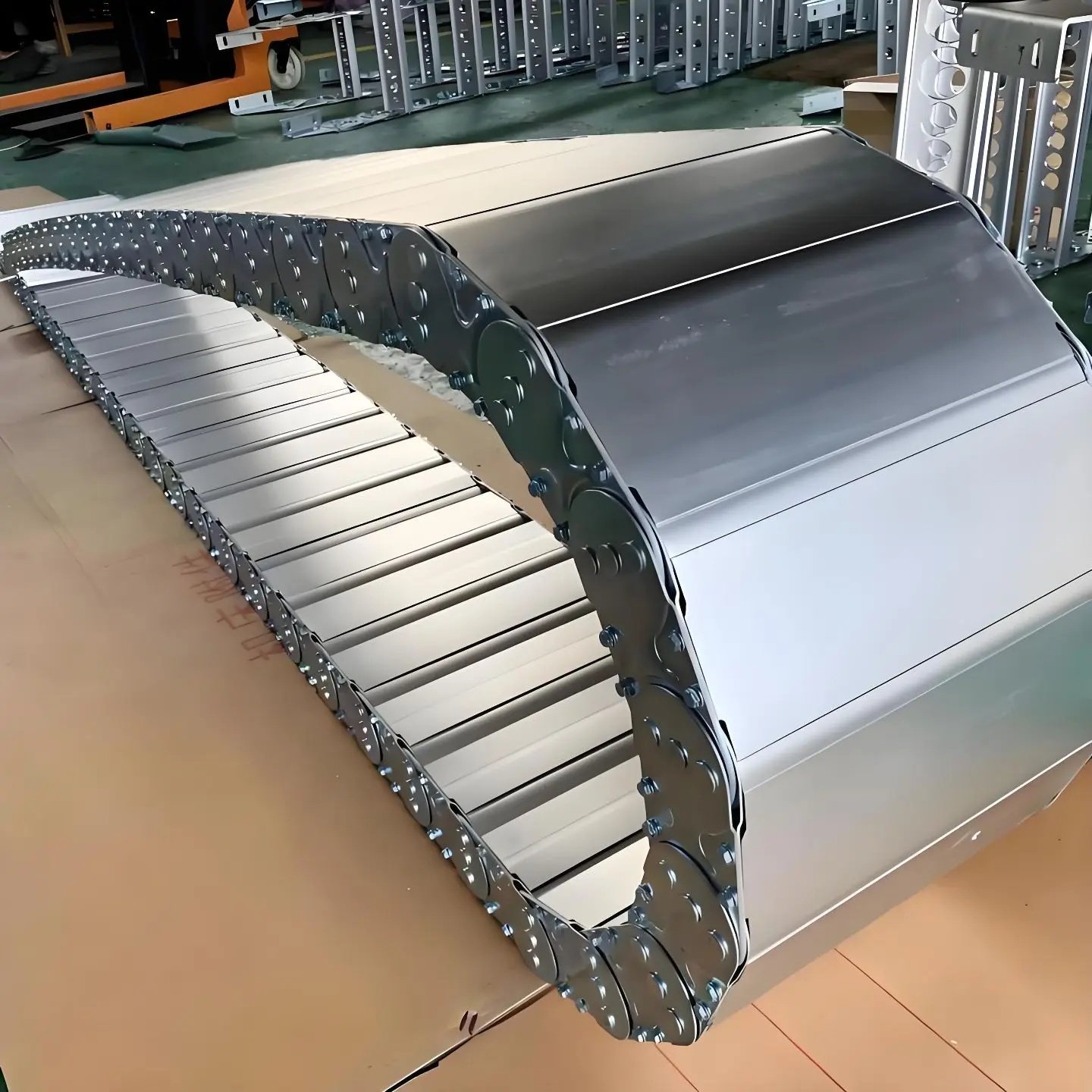

Fully Enclosed Drag Chain
Closed crossbars on every link form a continuous shell over the cable bundle. Hot chips, grinding dust, coolant spray and wood shavings stay outside — essential for grinders, laser tables, sanders and any environment where debris kills cables.
SERIES 03 / PERFORATED-PLATE

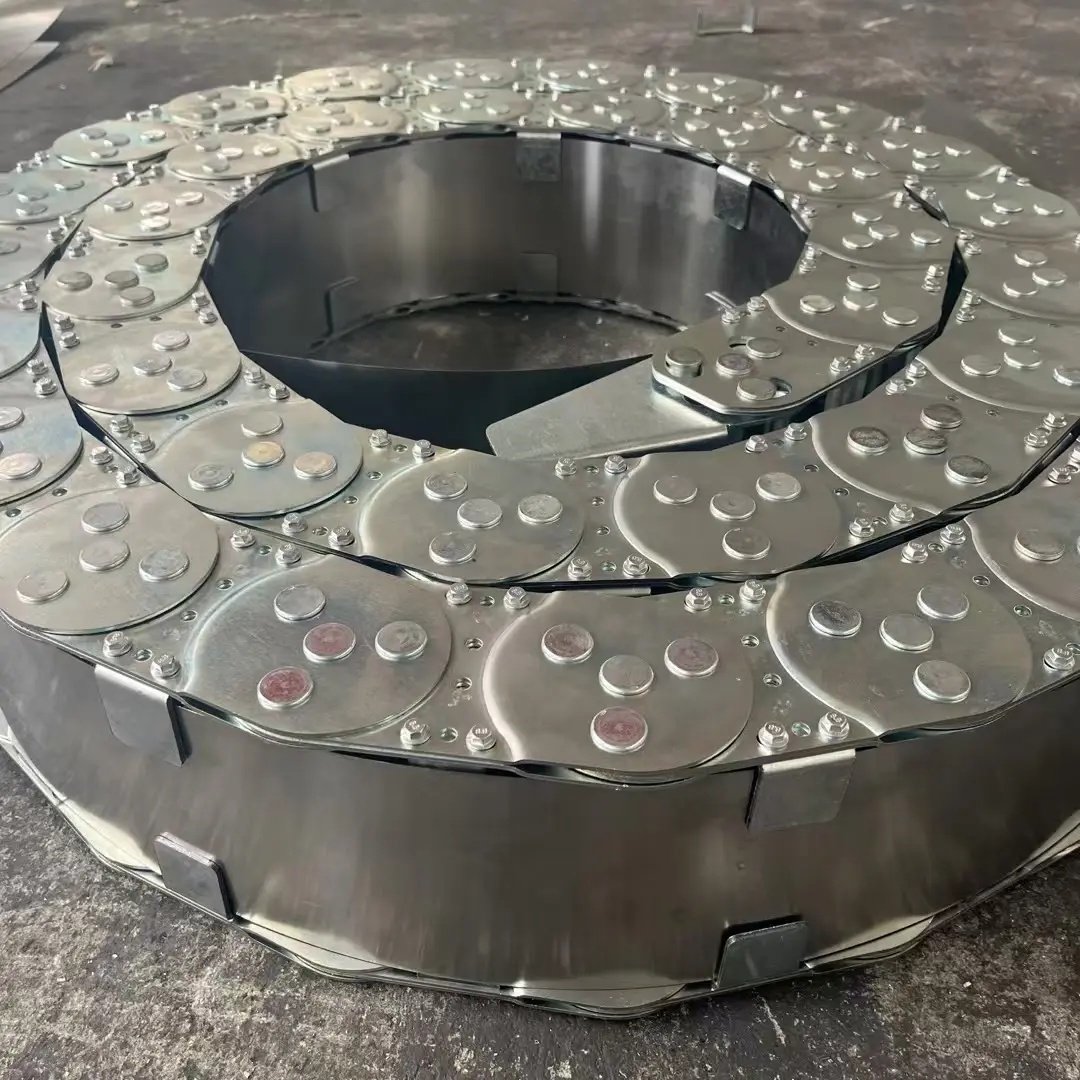

Perforated-Plate Drag Chain
Steel support plates punched on a standard hole grid. Chips and coolant fall straight through instead of packing inside, plate weight drops by roughly 30%, and cables clamp directly to the plate — no extra brackets, no on-site drilling.
SERIES 04 / TLG ENCLOSED

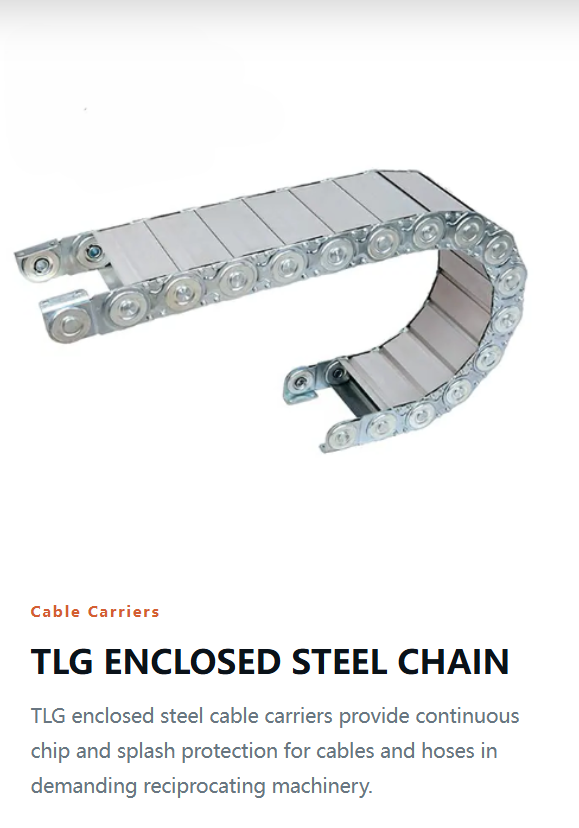

TLG Enclosed Drag Chain
Our heaviest construction: formed steel side plates with bolted cover plates that close the chain into a sealed box. Built for foundries, steel mills, port cranes and outdoor installations where slag, radiant heat and weather destroy ordinary chains.
03 / SERIES COMPARISON
Which Chain Fits?
Same mounting dimensions across most sizes — switching series rarely means re-designing the bracket.
| SERIES | STRUCTURE | CABLE ACCESS | PROTECTION | MATERIAL | TYPICAL USE |
|---|---|---|---|---|---|

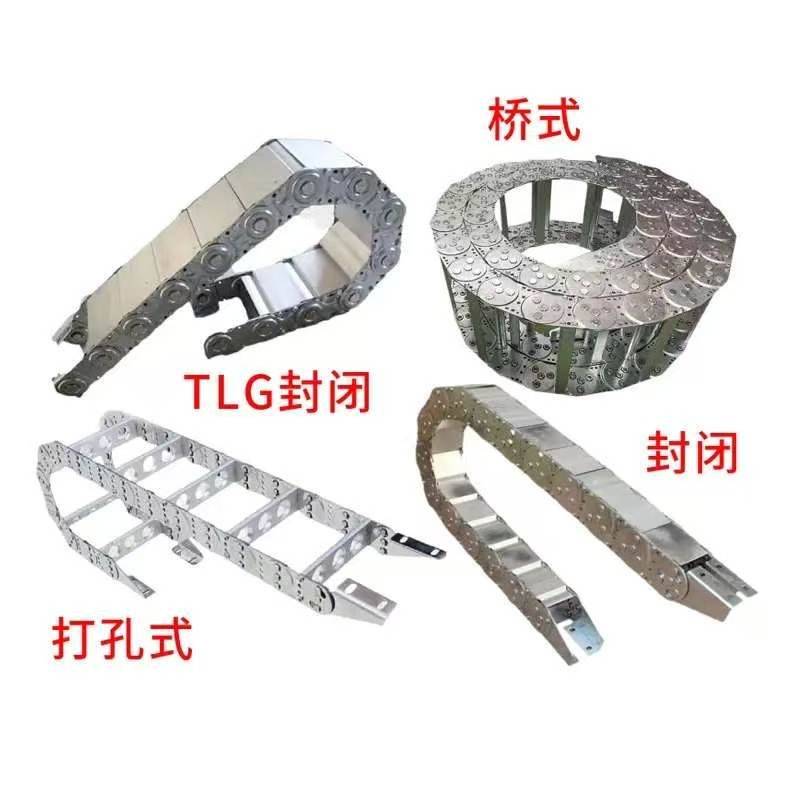

| 01 Bridge-Type | Open bridge crossbars over the full length | Snap in from the top, tool-free | Splash, light dust, oil mist | PA66 engineered plastic | CNC machining centres, gantry routers, automation lines |
| 02 Fully Enclosed | Continuous closed shell, no exposed gaps | Open the crossbar, or load from the ends | Chips, abrasive dust, coolant spray | PA66 / PP plastic, steel shell optional | Grinders, laser & plasma tables, wood-working |

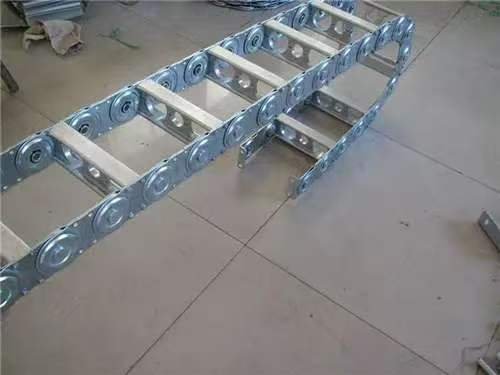

| 03 Perforated-Plate | Steel side plates, punched support plate | Clamp to the hole grid with tie mounts | Chips pass through; self-draining | Galvanized steel / stainless 304 | Welding lines, long steel travel, robot rails |
| 04 TLG Enclosed | Sealed steel box with bolted cover plates | Remove cover panels for service | Slag, radiant heat, weather, impact | Steel side plates + steel / aluminium covers | Foundries, steel mills, port cranes, outdoor gantries |
04 / SPECIFICATIONS
The Numbers That Matter.
Typical parameters across all four series. Full dimensional tables and 3D files are available on request.
| PARAMETER | TYPICAL RANGE | NOTES |
|---|---|---|
| Inner Height | 15 – 250 mm | Across all four series |
| Inner Width | 25 – 800 mm | Custom widths to drawing |
| Bending Radius R | 28 – 600 mm | Per cable minimum bend requirement |
| Pitch | 25 – 125 mm | Matched to series |
| Travel Speed | ≤ 5 m/s | Self-supporting or gliding |
| Travel Length | ≤ 50 m | Longer with gliding trough |
| Temperature | -40°C – +120°C | Plastic series; steel to 350°C |
| Cycle Life | 10 million+ | Tested in-house on rig |
05 / FROM THE LINE
Product
Production, assembly and installed reference shots — documented, not staged.
06 / APPLICATIONS
Where Our Chains Run.
From machining centres to port cranes — if it moves, we have a series for it.
07 / CUSTOM & OEM
Send a Drawing.
Get a Chain.
Non-standard inner cavities, unusual bend radii, special end fittings, food-grade or cleanroom nylon — most customs ship in 7 days because every step, from mould to assembly, is in-house.
08 / START A PROJECT
Not Sure Which Series?
Tell us the travel length, cable schedule and environment — we recommend the series and reply with a layout and a quote within one working day.
