10
COVER CONSTRUCTIONS
15–50mm
STANDARD FOLD HEIGHT
-40~900°C
MATERIAL TEMP RANGE
1 PC
MINIMUM ORDER
01 / OVERVIEW
Chips Out.
Accuracy In.
A guideway ruined by one hot chip costs more than every cover we ship in a year. RUIAO protective covers seal the moving axes of machine tools against chips, dust, coolant and sparks — accordion fabric bellows, telescopic steel, armor-lamella and fabric connectors, all cut and assembled in-house.
02 / PRODUCT TYPES
Ten Constructions.
Every Machine.
From flat guide covers to irregular fabric ducts — pick the type, send the measurements, we do the rest.
TYPE — 01

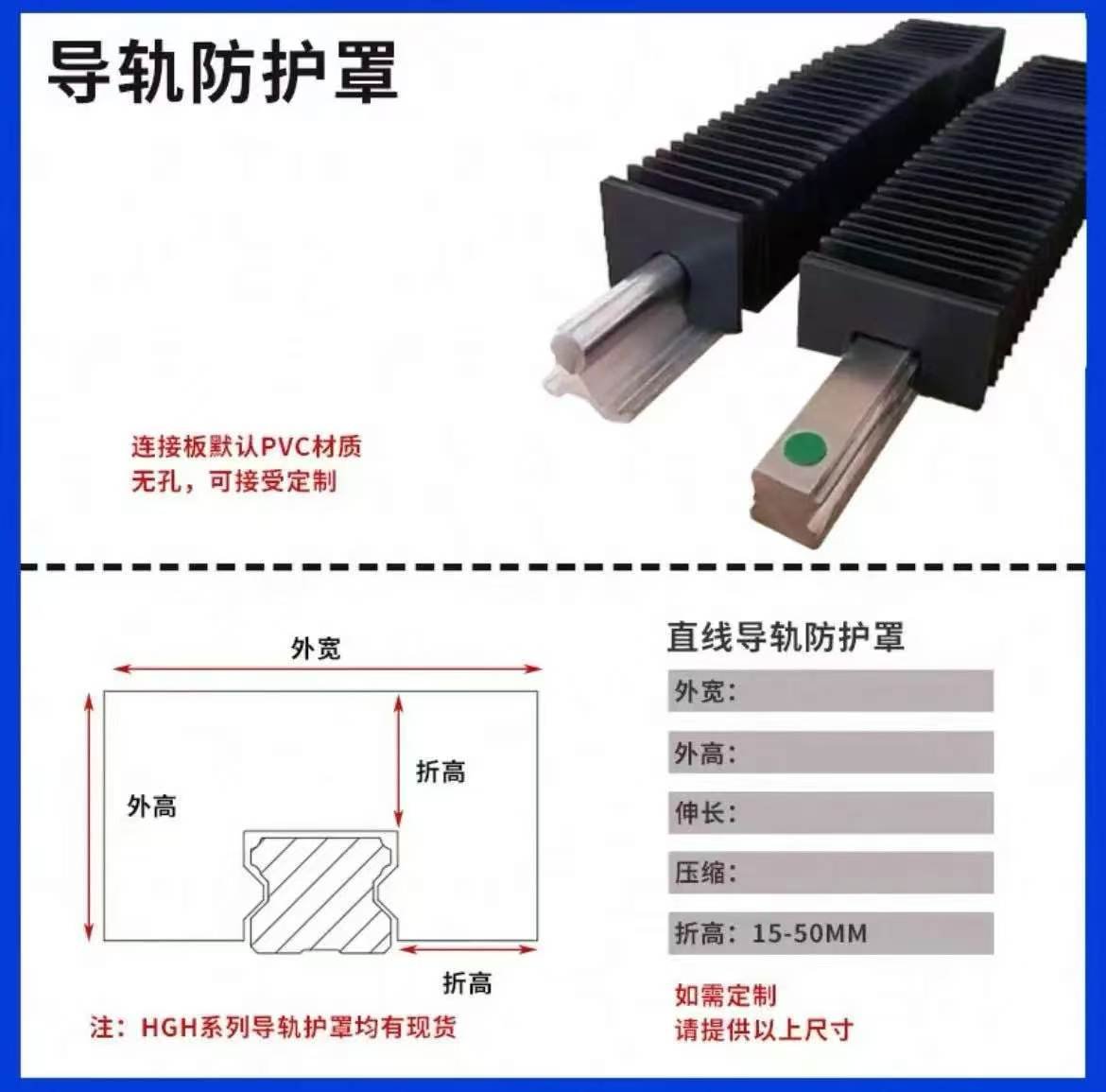

Guide-Rail Accordion Covers
Low-profile accordion covers that ride directly on linear guide rails. PVC connection plates unpunched as standard, custom drilling on request. HGH series sizes in stock.
TYPE — 02

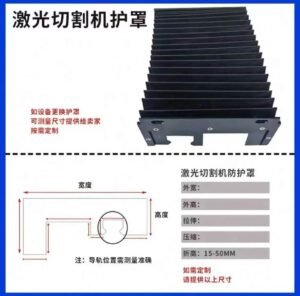

Laser Cutter Bellows
L-shaped beam bellows for laser cutting machines, with cut-outs matched to the guide position. Measure the old cover or the machine — either way we build to size.
TYPE — 03

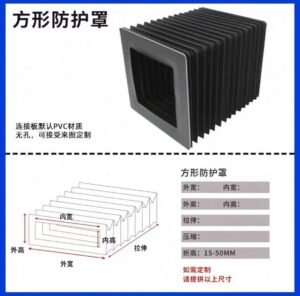

Square Bellows
Square-section fabric bellows for spindles, columns and lifting axes. Inside and outside dimensions both specified, PVC flange plates standard.
TYPE — 04

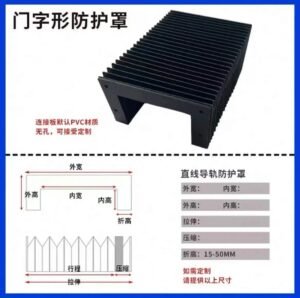

Gate (U-Shape) Bellows
Gate-shaped covers that bridge over the carriage and ride on both sides of the guideway — the classic choice for machine tables and cross slides.
TYPE — 05

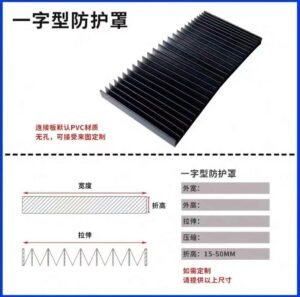

Flat-Type Bellows
One-piece flat accordion strips for long straight runs where height is tight. Simple, light, and the fastest cover to install on open guideways.
TYPE — 06

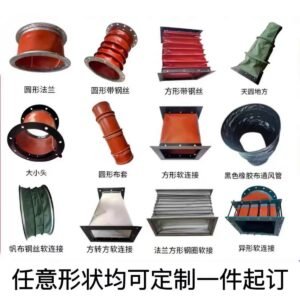

Flexible Connections & Ducts
Fabric expansion joints and ventilation connectors: flanged round, wire-reinforced, square, round-to-square, reducers and irregular shapes. Silicone, canvas or rubber cloth.
TYPE — 07

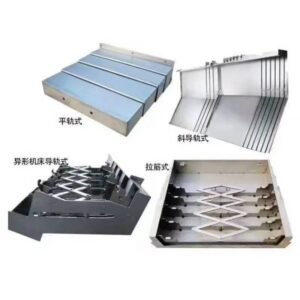

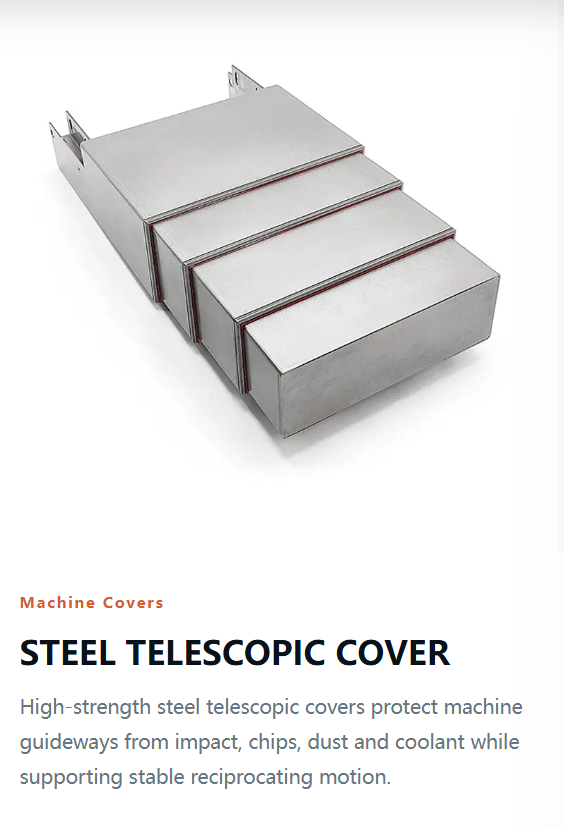

Telescopic Steel Way Covers
Telescoping sheet-steel covers in four builds: flat-rail, inclined-rail, special-shape and stiffened (draw-bar). Real chip armor for machining centres.
TYPE — 08

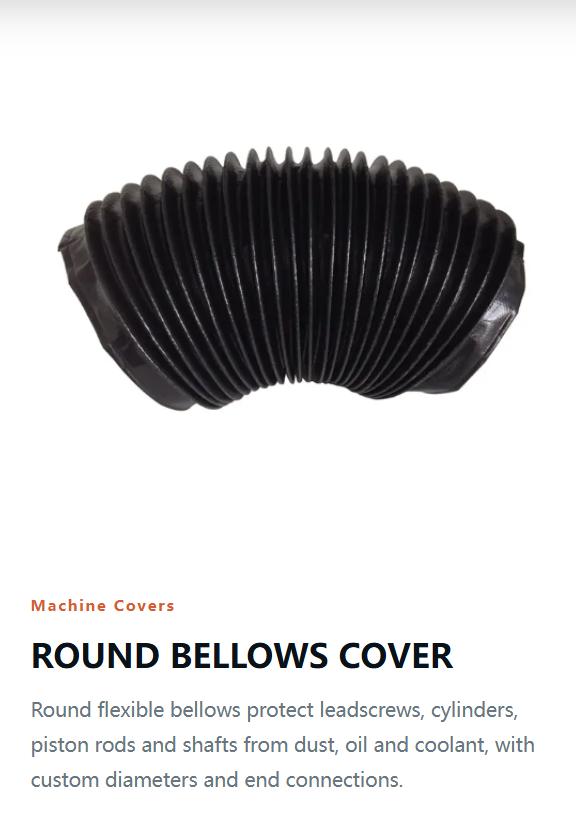

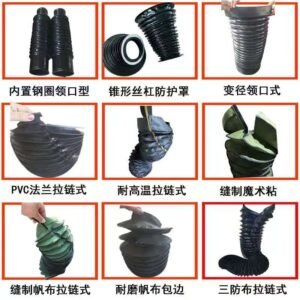

Round Bellows — Screw Covers
Round telescopic covers for ball screws and shafts, nine closure styles: steel-ring collar, conical, variable-diameter, PVC-flange zipper, heat-resistant zipper, sewn velcro, canvas zipper, bound canvas and three-proof zipper.
TYPE — 09

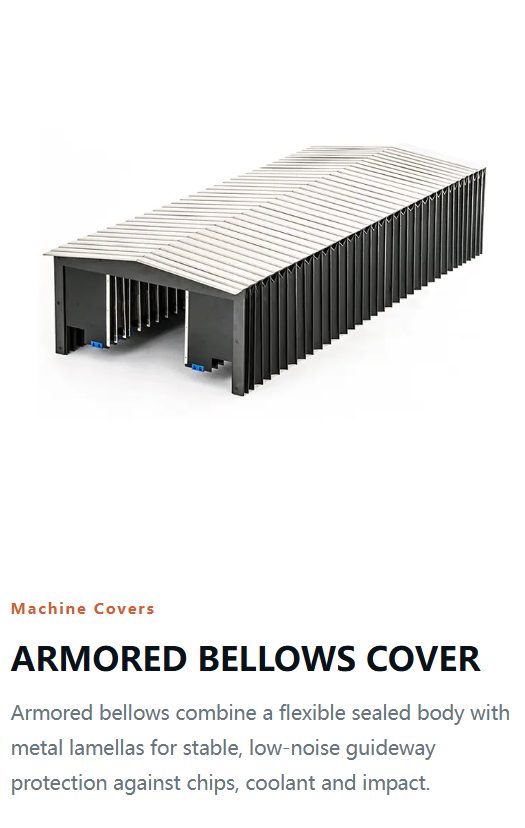

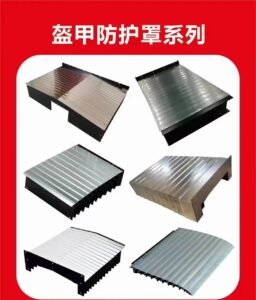

Armor (Lamella) Covers
Accordion covers reinforced with overlapping steel or stainless lamella on every fold — hot chips, weld spatter and grinding dust simply slide off the armor.
TYPE — 10

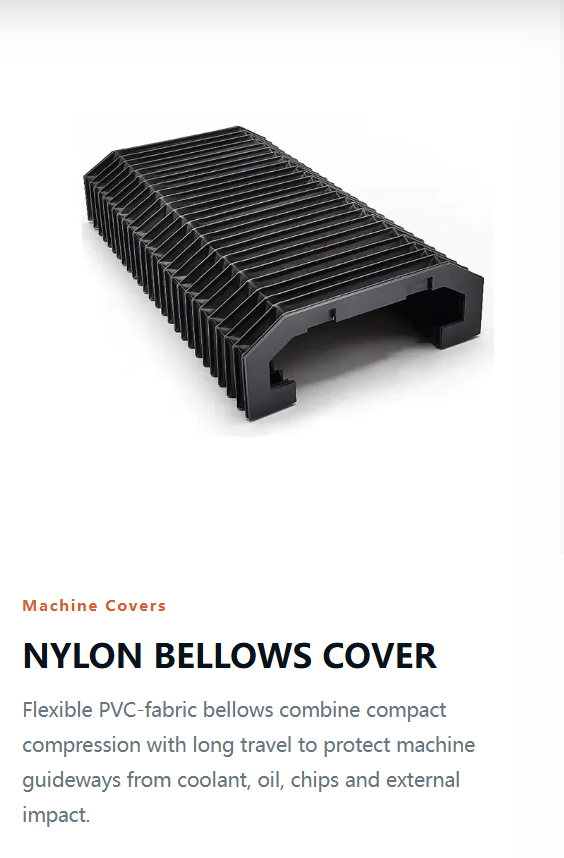

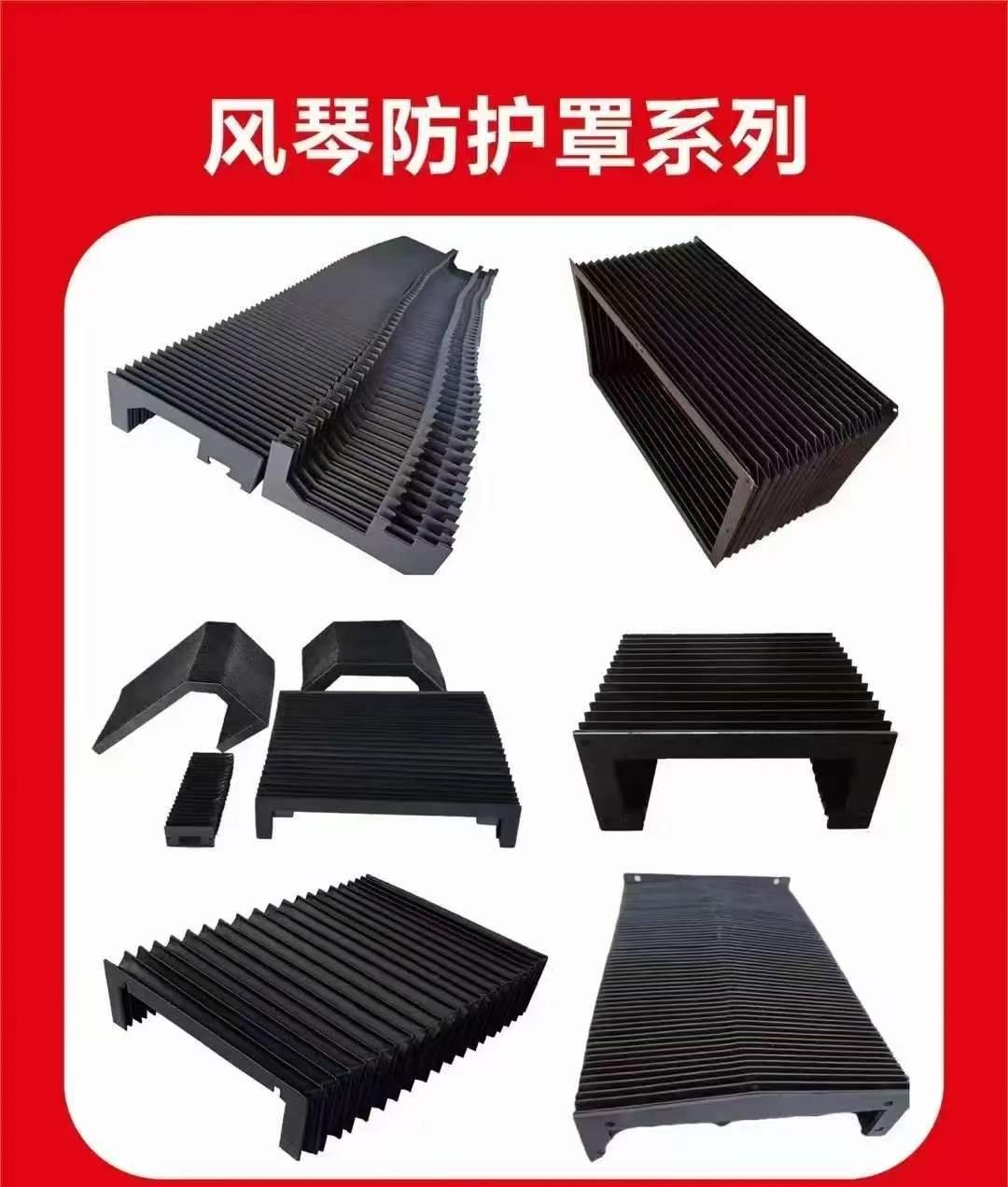

Accordion Cover Series
The general-purpose accordion family: glued or sewn folds, flat, gate, bridge and irregular shapes — one construction, endless geometry, built per drawing.
03 / MEASURE & ORDER
Five Numbers.
One Cover.
You don’t need a drawing. Measure five dimensions on the machine or the old cover and we quote in 24 hours.
04 / START A PROJECT
Which Cover Fits?
Send the five measurements or a photo of the old cover — we reply with the type, material and a quote within one working day.
