Chip Conveyors

HOME  /  PRODUCTS  /  CHIP CONVEYORS

Chip Conveyors.
Chips Out. Production On.

Four conveying principles — hinge belt, scraper, screw and magnetic — matched to the chip your machine actually makes. Swarf, granules, powder or curled steel: there is one correct way to move it out.

04

CONVEYING TYPES

200–1000MM

WORKING WIDTH

<100MM

CHIP LENGTH HANDLED

7 DAYS

BUILT TO YOUR PIT

01 / OVERVIEW

Every Chip.
One Way Out.

Chips that stay in the machine cut accuracy and kill tool life. RUIAO builds the full family of machine-tool chip conveyors — hinged belt, scraper, screw and magnetic — from our own steel, matched to your machine bed, pit depth and chip type, with the chip cart or bin of your choice at the discharge end.

F.1Matched to the ChipHinge belt for swarf and lumps, screw for granules, magnetic for fines — never one conveyor for everything.
F.2Built to Your MachineInlet height, angle and length made to your machine bed or coolant pit drawing.
F.3Coolant Can Come TooChip–coolant separation and lifting options at the discharge end on request.
F.4Overload ProtectedTorque-limiting drives and automatic tensioning keep the line running unattended.
02 / CONVEYING TYPES

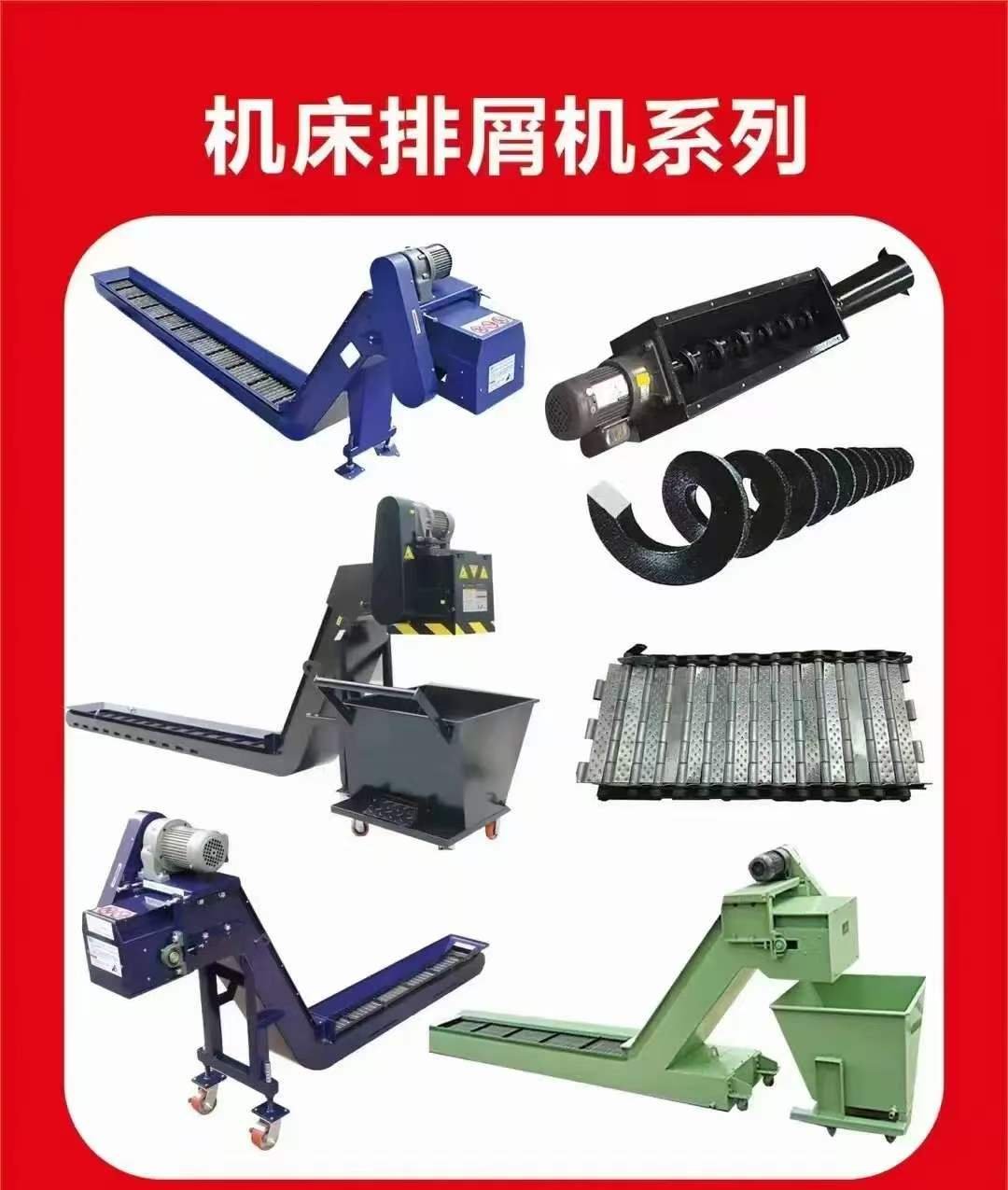

Four Principles.
Pick By Chip.

The four constructions below cover every cutting process we see — lathe swarf, machining-centre lumps, sawdust-like granules and grinding fines.

TYPE — 01

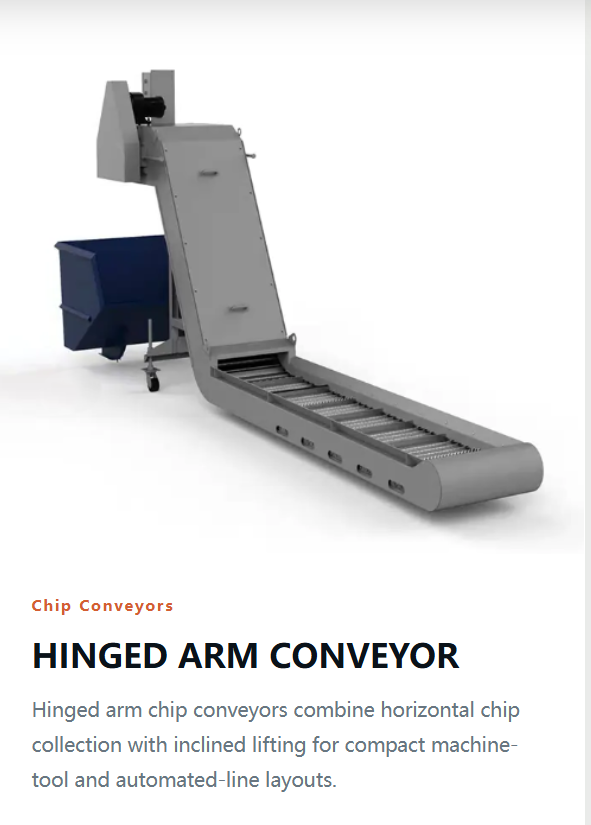

Hinge Belt Conveyor

链板排屑机 · the all-rounder

The most common chip conveyor. Handles every class of cutting chip; wide speed selection for high throughput; hinge plates in seamless or finned styles across many widths; overload self-protection built in.

ALL CHIP TYPESSEAMLESS / FINNEDOVERLOAD PROTECTION
TYPE — 02

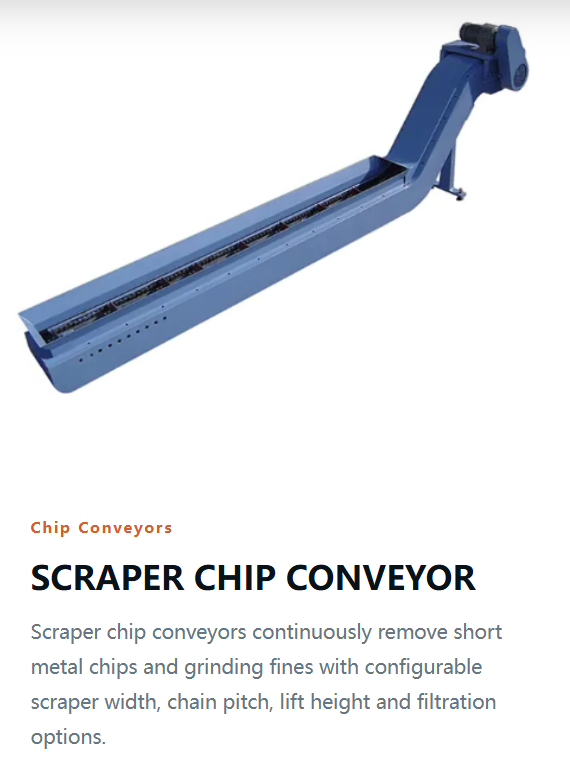

Scraper Conveyor

刮板排屑机 · compact & quiet

Small footprint, high output, scraper widths to order. Rigid scraper assemblies run true and quiet; scrapers bolt to the chain with stainless self-locking screws, so replacement takes minutes.

COMPACTQUIET RUNNINGFAST SCRAPER SWAP
TYPE — 03

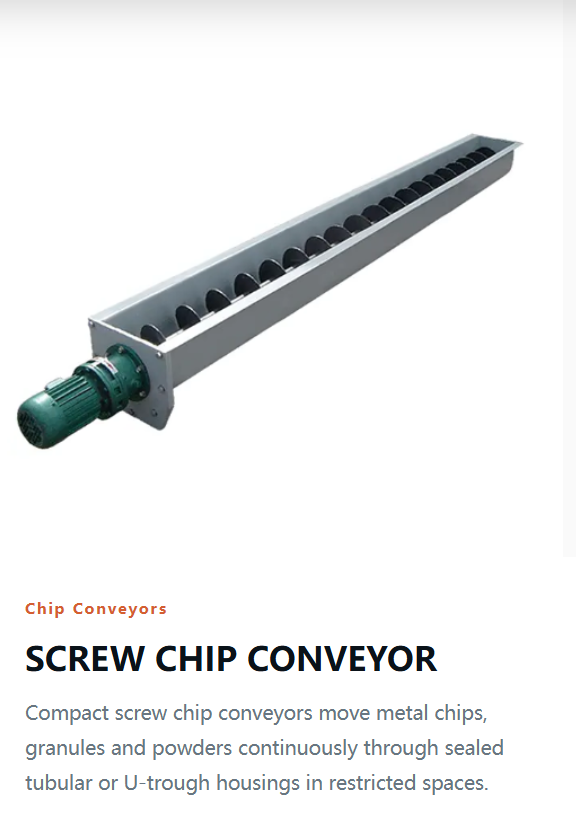

Screw (Auger) Conveyor

螺旋式排屑机 · A / B / C builds

Type A: cored auger in a trough · Type B: cored auger without trough · Type C: coreless, up to 3000 mm. For granular, powdery, blocky and curled chips from metal and non-metal cutting.

A / B / C TYPESCORELESS ≤3000MMGRANULES & POWDER
TYPE — 04

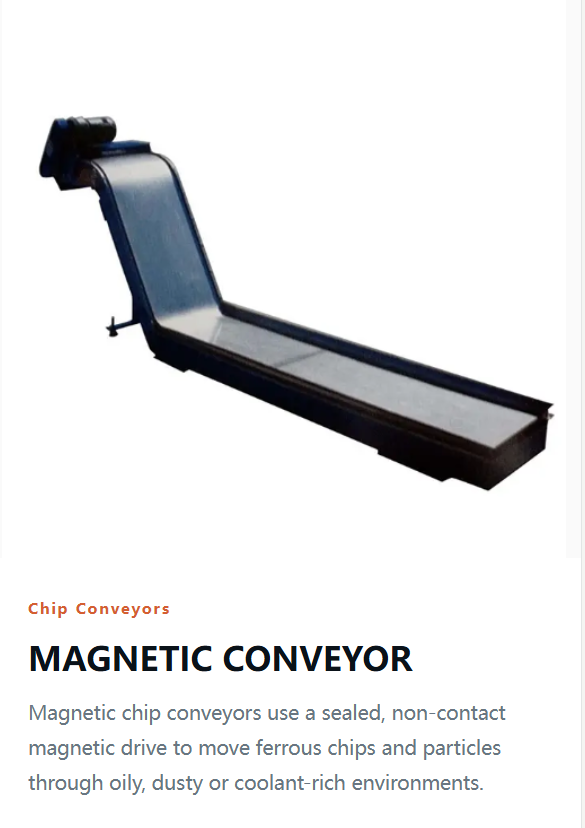

Magnetic Conveyor

磁性排屑机 · fines & coolant

For powdery and granular ferrous chips under 100 mm, non-curly swarf, or separating fines from oil and emulsion. Metered discharge never overloads; automatic tensioning keeps the belt true for years.

FERROUS FINESMETERED DISCHARGEAUTO TENSION
03 / HOW EACH ONE WORKS

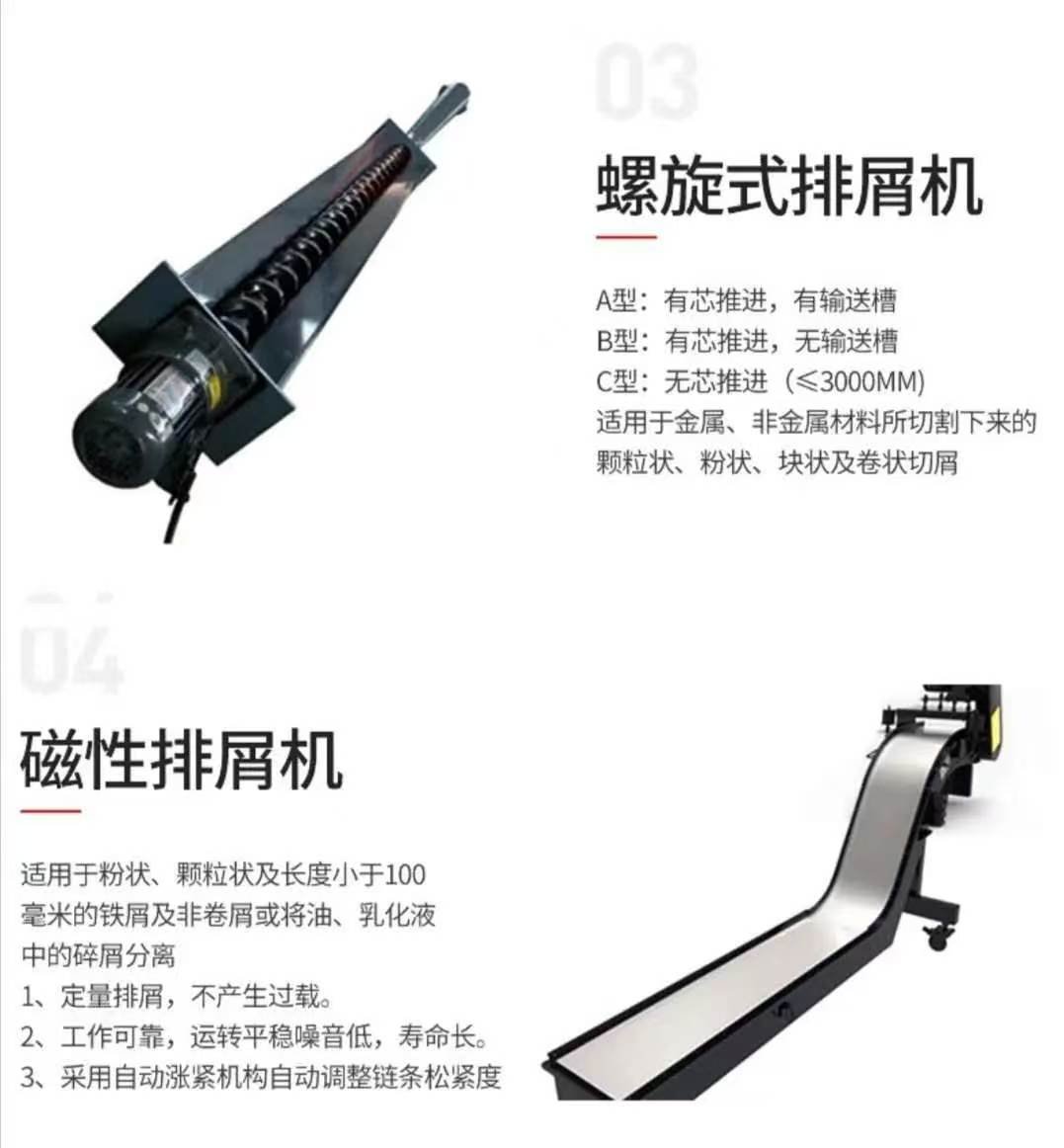

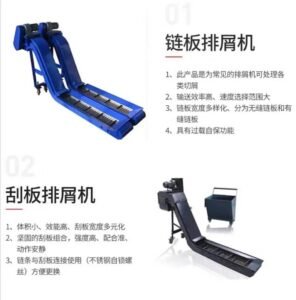

Two Sheets.
All Four Types.

Send us the machine model and a chip photo — we select the type, then size it to your bed and pit.

S.1Hinge BeltWidths and plate styles to order; speed matched to chip volume.
S.2ScraperChain-driven, stainless self-locking scraper bolts.
S.3Screw A / B / CCored in trough, cored open, or coreless up to 3000 mm.
S.4MagneticFerrous chips <100 mm; fines-out-of-coolant duty.
* DISCHARGE INTO CART, BIN OR LIFTING CONVEYOR — ALL COMBINED FROM THE SAME WORKSHOP.
04 / IN THE FIELD

Long Runs.
Installed & Running.

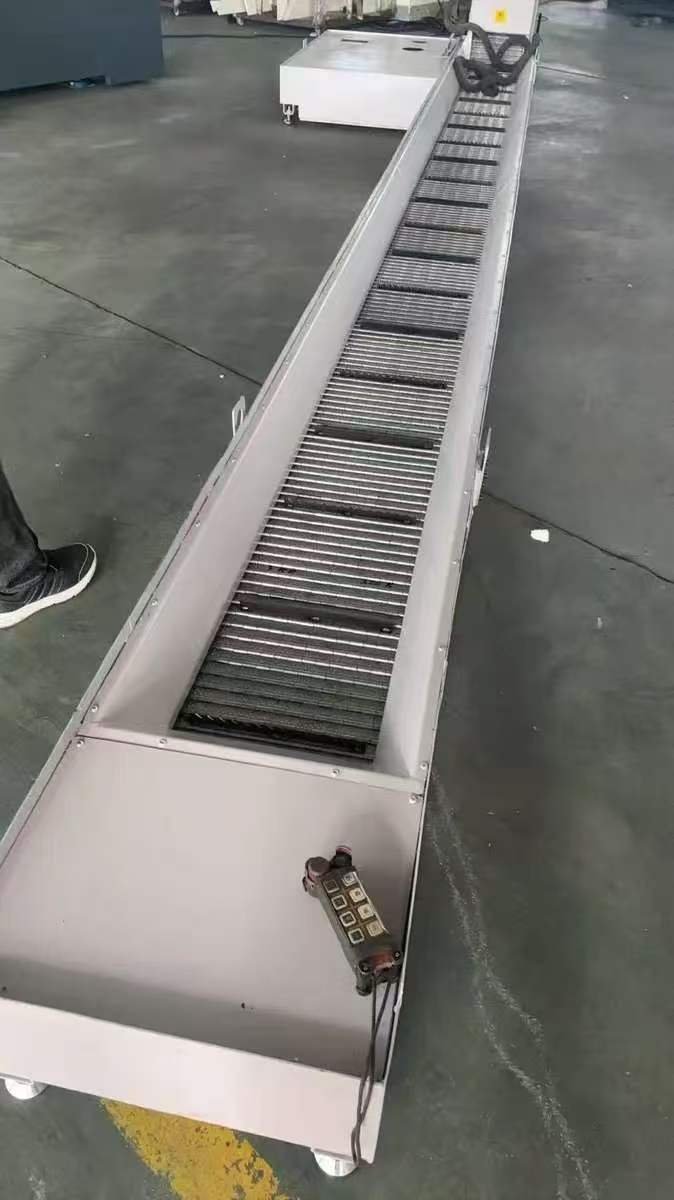

* CUSTOM LONG-RUN CONVEYOR BUILT TO THE CUSTOMER’S PIT — MOBILE UNDERCARRIAGE FOR MAINTENANCE.
05 / START A PROJECT

Tell Us the Chip.
We'll Tell You the Type.

Machine model, chip photo or pit drawing — we reply with the right conveying principle, a layout sketch and a quote within one working day.
